Introduction

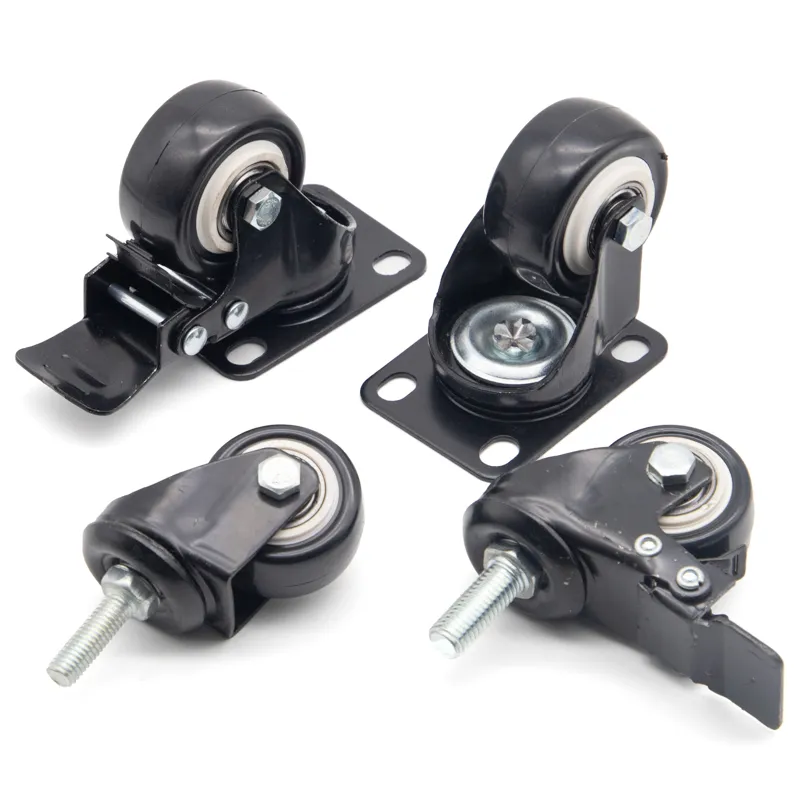

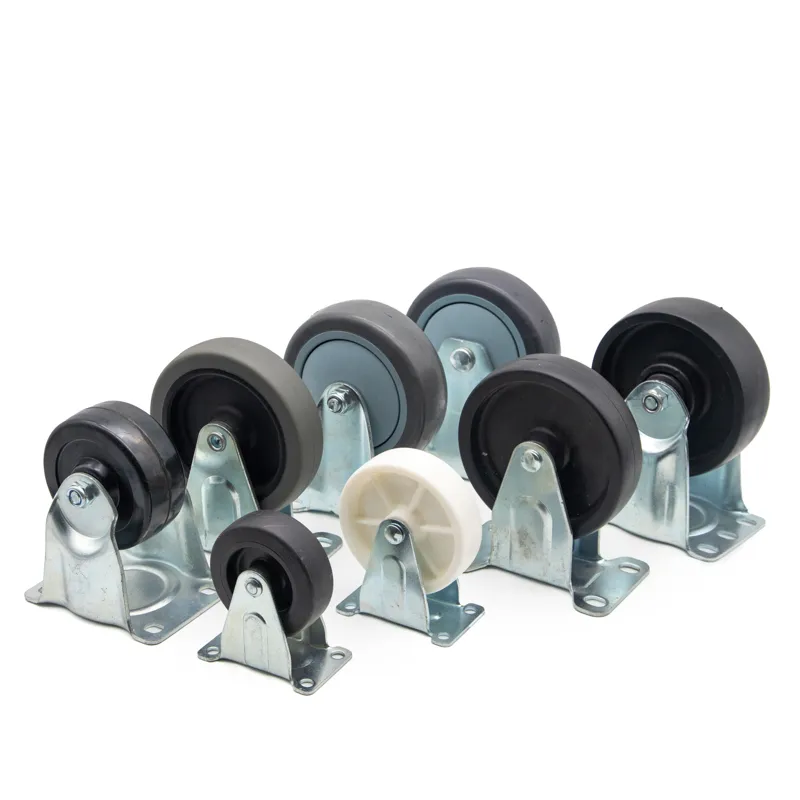

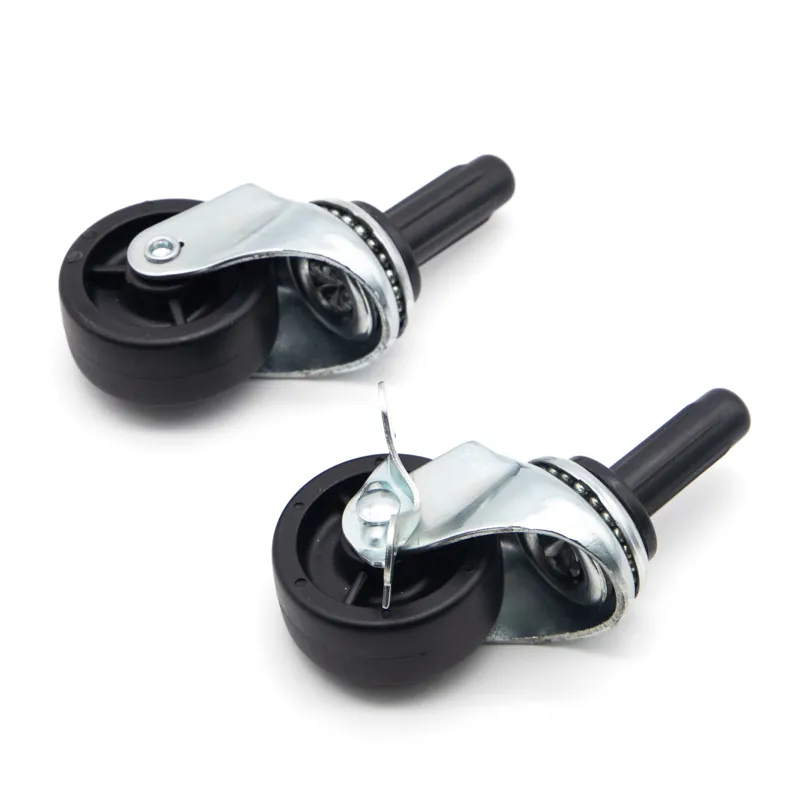

Product Overview: Light duty caster wheel
Welcome to our Light duty caster wheel solution, where mobile devices meet unparalleled functionality. Our casters are designed to provide an elegant and modern look for any mobile furniture, display racks, equipment, etc., while ensuring durability, safety, and aesthetics.
Specifications and Parameters:
- Material: PP, PU, TPU PVC, TPR, POM, ABS, RUBBER , and so on can be customized
- Wheel diameter: 25mm, 38mm, 50mm, 63mm, 75mm, 90mm, 100mm, / 1”, 1.5”, 2”, 2.5”, 3”, 3.5” 4”, and so on can be customized
- Color options: Black, gray, white, red and so on can be customized
- Screw: metric: M8, M10, M12; British: 5/16,3/8,1/2-12,1/2-13 and so on can be customized
- Length: 10-75mm customizable
- Plug: 8-11mm, customizable
- Plate: 50*50mm; 76*36mm, 96*70mm, 114*100mm etc. can be customized
| Diameter (mm) | Wide (mm) | Gyration Radius (mm) | Height (mm) | load-bearing (kg) | Brake way |
| 25 | 16 20 25 45 | 20 | 40 | 20-30/30-40 | Side brake |
| 30 | 25 | 45 | 25-35/35-45 | ||
| 38 | 30 | 53 | 30-40/40-50 | ||
| 50 | 35 | 65 | 35-50/45-60 |
12# light duty caster (swivel)
| Diameter (mm) | Wide (mm) | Gyration Radius (mm) | Height (mm) | load-bearing (kg) | Brake way |
| 50 | 25 | 45 | 72 | 30-50 | Side brake |
| 63 | 65 | 85 | 30-50 | ||
| 75 | 70 | 97 | 40-70 | Rear brake Side brake | |
| 100 | 80 | 122 | 50-80 | ||
| 125 | 85 | 147 | 50-90 | ||
| Configuration: screw way: M8-M12, 5/16-1/2. Stem way: Diameter: 8-18. The connection is excessive set. The length of stem and screw are depended on you. Connection dimension of the plates as the follow box. | |||||
| Remarks：the wheels with bearings have not side brake. | |||||
| Plate number | Plate configuration (mm) | Plate site (mm) | Plate size (mm) |
| A1 | 92X63 | 73X64 | 11.5X8.5 |
| A2 | 75X65 | 57X47 | Diameter: 8.5 |
| A3 | 72X60 | 58X46 | 8.5X7.0 |
| Configuration: A1 is used the installation size of this series. | |||
Compliance: Meets international safety standards such as ASTM, EN, and ISO.
Product Features:
Roll smoothly and turn smoothly
Application Scenarios:
- Commercial Buildings: Ideal for office buildings, shopping malls, and hotels, providing a professional and inviting exterior.
- Residential Projects: Enhance the modern look of apartments, condominiums, and luxury homes.
- Public Buildings: Perfect for museums, airports, and educational institutions, offering a blend of functionality and style.
- Renovations: Upgrade existing structures with a contemporary glass façade to improve aesthetics and performance.
Frequently Asked Questions (FAQ):
Q: How long is the delivery time for custom caster wheel order?
A: Injection molding takes 30-35 days to open the mold, and 35 days can provide pre-production samples. Delivery time is usually 4 to 5 weeks after receiving the formal order, depending on the complexity and size of the project.
Q: Are there color options for the caster wheel?
A: Of course! We offer a variety of color options, including silver, gold, black, gray, bronze, nickel-plated, coffee, beige, and more, which can be customized to meet your specific design requirements.
Q: How to maintain and maintain the casters?
A: Our casters are easy to maintain. If they get dirty, clean them regularly with a mild detergent and water or remove them. There is no need for special maintenance.
